UP – Single mast goods-lift

Capacity range from 300 kgs up to 2500 kgs

Home » UP – Single mast goods-lift

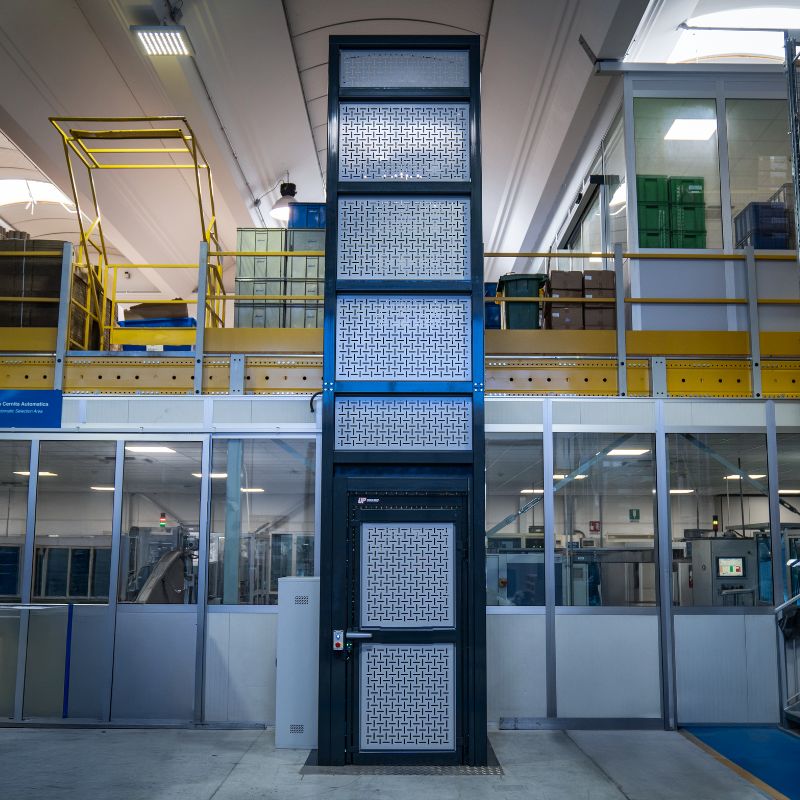

Single-mast hydraulic lifting system certified for the transport of goods with attendant on board. Load capacity range from 300Kgs up to 2500Kgs. Given its taylor made features, it could be perfectly used as a mezzanine goods-lift.

UP goods-only

With the entire loading area optimized for material only, it is suitable for connecting multiple levels with operators present on the landings. Suitable to be installed in automated industrial warehouses.

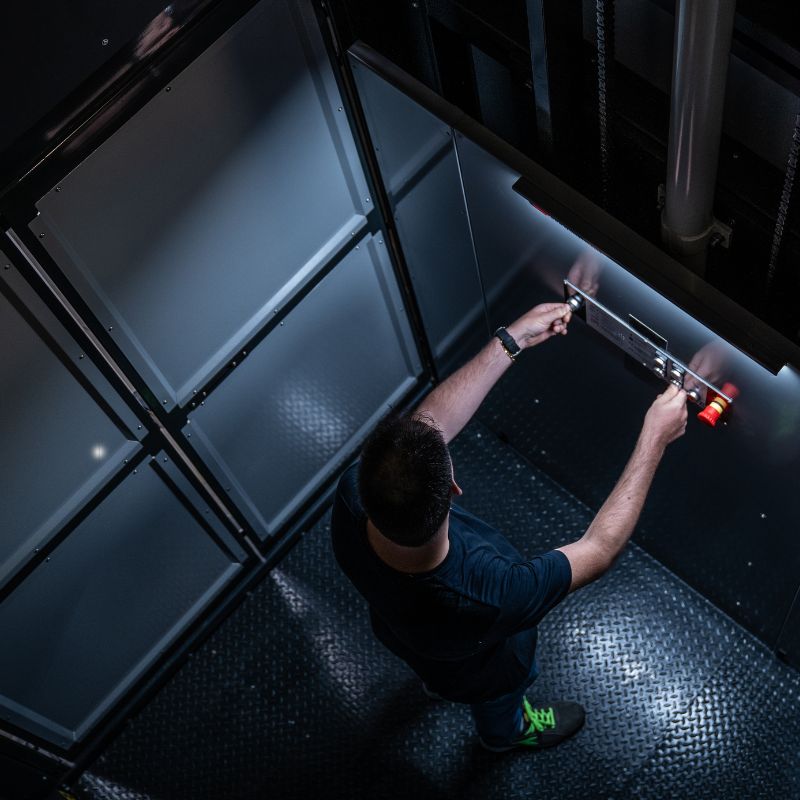

UP SPB with ATTENDANT on board

Allows the attendant to operate the system on board in complete safety. This system improves usability and work capacity by reducing material loading and unloading time.

UP3 Single-mast goods-lift 300 kgs

Scope

300 kg

Max stroke

7 m

Floor depth

1300 mm

Flatbed width

1700 mm

Pit

120 mm

Minimum header

2150 mm

Max stops

5

Power supply

Single-phase

Basic motor

1.5 kW

UP6 single-mast goods-lift 600 kgs

Scope

600 kg

Max stroke

7 m

Floor depth

1300 mm

Flatbed width

1700 mm

Pit

120 mm

Minimum header

2150 mm

Max stops

5

Power supply

Single-phase

Basic motor

2.2 kW

UP10 single-mast goods-lift 1000 kgs

Scope

1000 kg

Max stroke

16 m

Floor depth

2000/2500 mm

Flatbed width

2800 /2500 mm

Pit

150 mm

Minimum header

2150 mm

Max stops

5

Power supply

Three-phase

Basic motor

3 kW

UP15 single-mast goods-lift 1500 kgs

Scope

1500 kg

Max stroke

16 m

Floor depth

1700/1900 mm

Flatbed width

2500/1900 mm

Pit

150 mm

Minimum header

2150 mm

Max stops

5

Power supply

Three-phase

Basic motor

4 kW

UP20 single-mast goods-lift 2000 kgs

Scope

2000 kg

Max stroke

16 m

Floor depth

2000/2400 mm

Flatbed width

2800/2400 mm

Pit

250 mm

Minimum header

2150 mm

Max stops

5

Power supply

Three-phase

Basic motor

4 kW

UP25 single-mast goods-lift 2500 kgs

Scope

2500 kg

Max stroke

16 m

Floor depth

1700/1900 mm

Flatbed width

2500/1900 mm

Pit

250 mm

Minimum header

2150 mm

Max stops

5

Power supply

Three-phase

Basic motor

5.5 kW
